Improve your part quality controlling the mold temperature

 (c) SIGMA Engineering GmbH

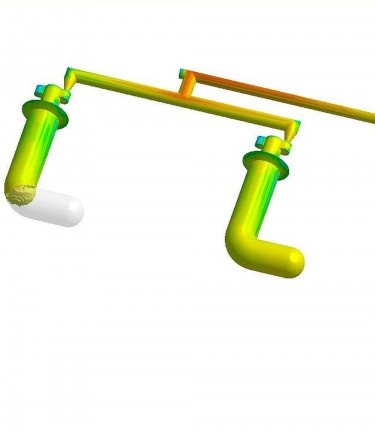

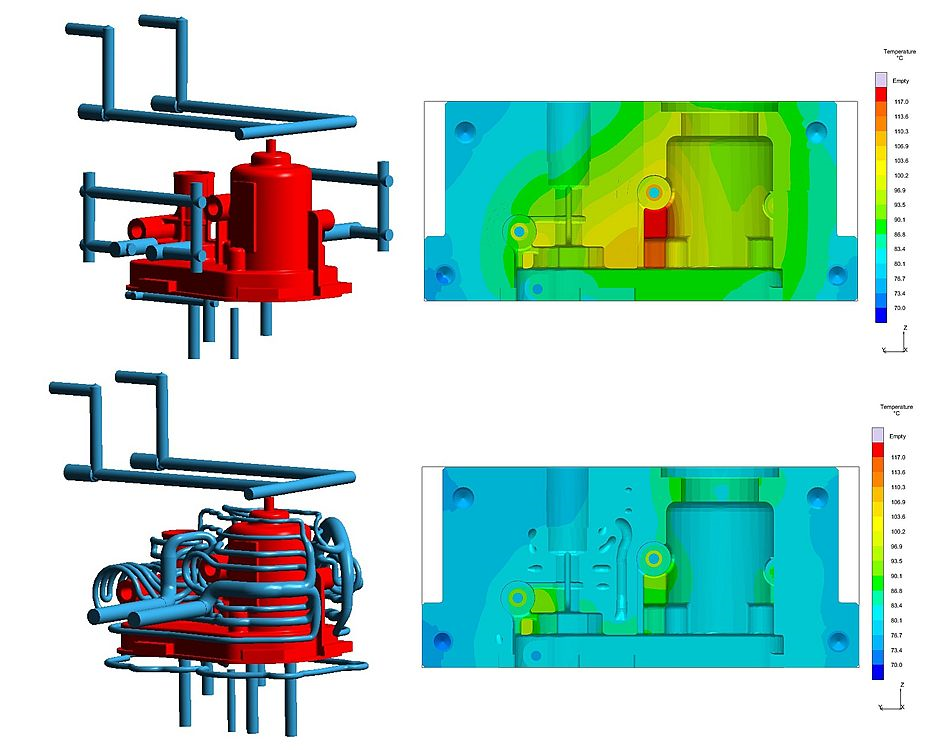

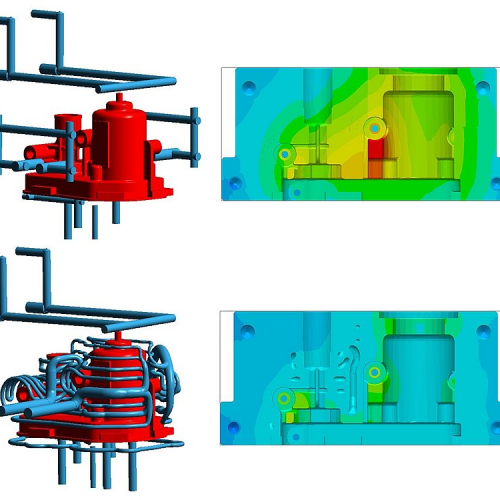

Figure 1 – With SIGMASOFT® Virtual Molding it is possible to compare the temperature distribution in the mold cavity for different cooling configurations.

Figure 1 – With SIGMASOFT® Virtual Molding it is possible to compare the temperature distribution in the mold cavity for different cooling configurations. (c) SIGMA Engineering GmbH

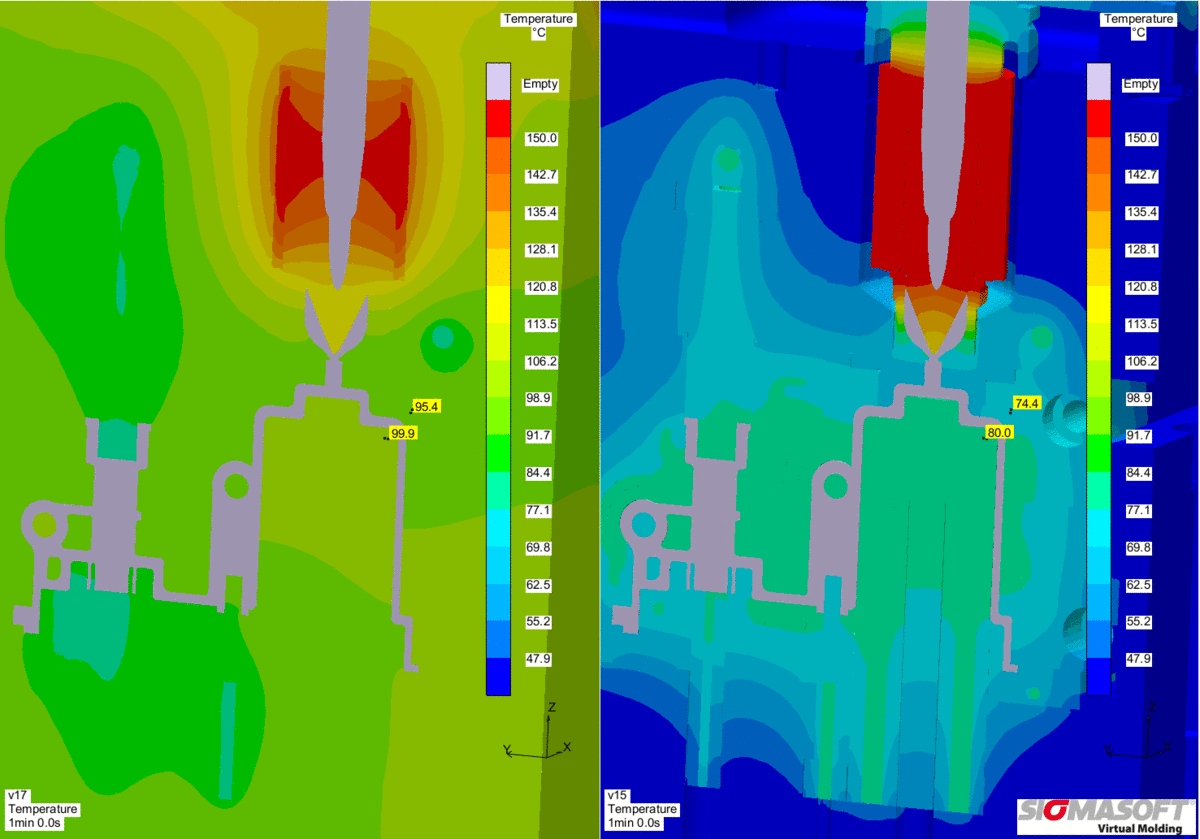

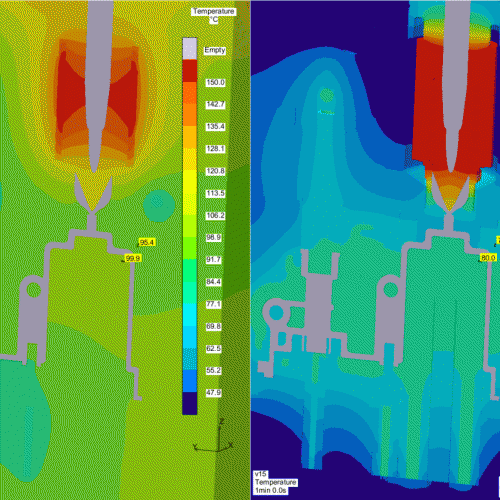

Animation – The temperature distribution in the mold is compared for both the conventional cooling and the conformal cooling. (c) SIGMA Engineering GmbH

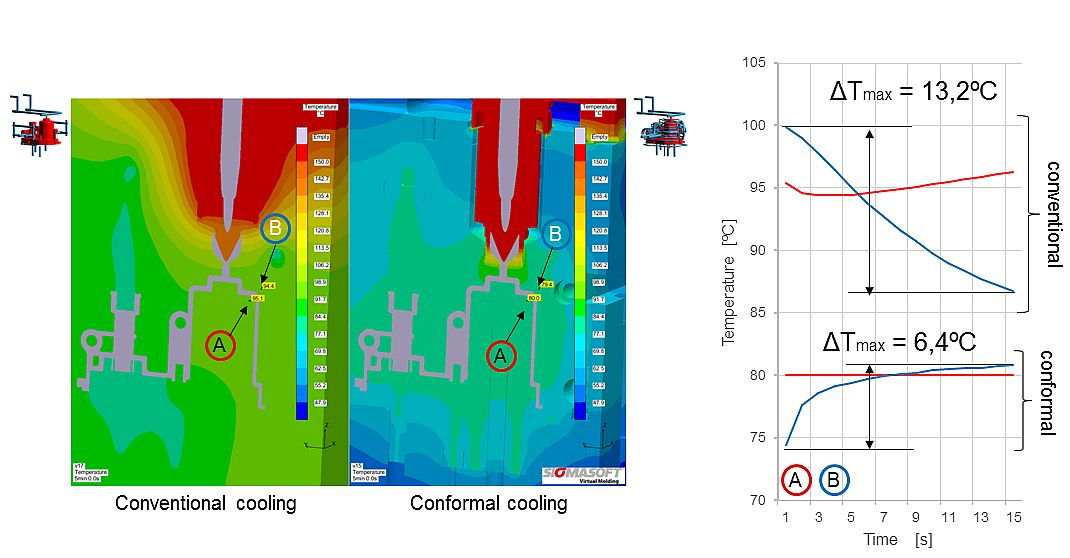

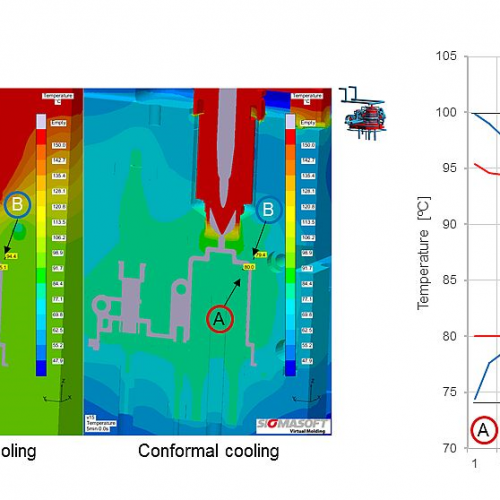

Figure 2 – Placing two virtual sensors in the mold it is possible to track the temperature behavior at any location in the process. The conformal cooling configuration delivers a smaller temperature gradient between both mold halves. (c) SIGMA Engineering GmbH

Controlling the mold temperature is crucial when it comes to optimization of injection molding processes. Software calculations can help finding the best thermal design to improve the part quality.



Thermal mold design is one of the most critical parameters determining the performance of an injection molding operation. Up to now, a lot was left to guessing and prior experiences, but nowadays, this approach is changing with the latest simulation tools. One of the pioneers has been IPC (Innovation Plasturgie Composites, from Oyonnax in France), who has successfully been using SIGMASOFT® Virtual Molding for six years for designing the thermal layout of their injection molds.

IPC’s approach has been to virtually analyze the impact of different cooling concepts to find the one that suits their requirements best. The company combines traditional cooling systems with conformal cooling. The analysis performed with SIGMASOFT® Virtual Molding enables them to quickly detect the impact of every iteration in the mold performance (in terms of cycle time) and on the part quality (regarding warpage and residual stresses).

In a particular part configuration, it has been proved that a regular and homogeneous mold temperature increases part quality. Therefore, it is important to analyze the behavior of the mold temperature using both a conventional and a conformal cooling configuration.

In Figure 1, the temperature in the mold is compared at the same cycle time for both tempering concepts. As seen, the temperature gradient in the mold is substantially reduced when using the conformal cooling configuration. The temperature in the cavity is almost homogeneous and the peak value of heat concentration is reduced from 117°C to 93°C. With this reduction in mold temperature, especially reducing the heat concentration at critical areas, the cycle time has been reduced by almost 27%.

Additionally, the overall heat transfer distribution in both mold halves has been improved utilizing the conformal cooling configuration. In the left side of the animation, the behavior of the mold temperature during a molding cycle is presented for the original cooling configuration. The animation on the right shows the same molding cycle using the conformal cooling configuration. It is evident that the conformal cooling can maintain the temperature in the mold cavity closer to the objective value (80°C).

Furthermore, the animation points out that the influence zone of the hot runner system has been confined. Limiting this influence zone improves part quality and reduces cycle time.

Finally, a further benefit of the conformal cooling was quantified by placing two sensors, one on the movable half and one on the fixed half. The objective was to account the difference between both mold halves, knowing that temperature gradients will have a negative impact on part deformation.

As seen in Figure 2, the maximum temperature gradient was reduced from 13,2°C to 6,4°C between both mold halves over the molding cycle. As an additional benefit, the temperature of the fixed half on the conformal cooling configuration was set to remain almost unchanged during the cycle fraction observed, proving once more the benefit of isolating the heat coming from the hot runner system.
